Customizable Color High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Separation

브랜드 이름:	Flyon Sports
모델 번호:	커튼을 나누십시오
모크:	50 평방 미터
가격:	46-100 dollars per SQM
지불 조건:	티/티
공급 능력:	> = 50000 sqm/월

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

인증:

SGS/GB-8624

재료:

PVC / 고강도 직물

색상:

맞춤형

무늬:

맞춤형

환경 성과:

GB-18586

통기성:

> 45%

찢김 저항:

GB/T 3917.3-2009

포장 세부 사항:

나무 상자

공급 능력:

> = 50000 sqm/월

강조하다:

Customizable Color Dividing Curtains

High Strength Fabric Divider Curtain

Electric Control System Partition Curtain

제품 설명

Customizable Color High Strength Fabric Dividing Curtains with Electric Control System for Efficient Space Separation

Our dividing curtain systems provide the perfect solution for efficiently separating spaces in industrial and commercial facilities. Designed for maximum performance and reliability, these curtains offer superior functionality while maintaining visual appeal.

Single Curtain System Specifications

Product Name	Divider Curtain	Total Hanging Weight	≤ 2.5 kg/m
Maximum Height	12m	Hanging Spacing	≤ 3m
Maximum Width	36m	Maximum Bearing Capacity (per lifting point)	≤ 80kg
Maximum Area	300m²	Maximum Hanging Weight	≤ 750kg

Color Options

Model Variations

Installation Safety Requirements

A safety gap of at least 50 cm should be reserved between this partition curtain system and adjacent partitions or walls
A safety clearance of at least 15 cm should be maintained on the side without motor drive system
At least 5 cm ground clearance must be reserved between the bottom of the partition curtain and the ground

Electric and Control System

High-performance drum motor (220V, 450W, 120N/M) with internal planetary gear reducer
Integrated up-and-down position brake limiter and push-button limit switch
Automatic reset and thermal overload protection system built into the middle winding drum
Ensures stable and reliable operation in all conditions

Product Advantages

Double curtains constructed from high-quality PVC for superior sound absorption
Partial mesh design allows natural light transmission while maintaining separation
Complete system includes all required materials, parts, and aluminum truss load-bearing structure
Environmentally friendly, tear-resistant, high-strength, and fire-resistant materials
Simple to operate with multiple customization options available

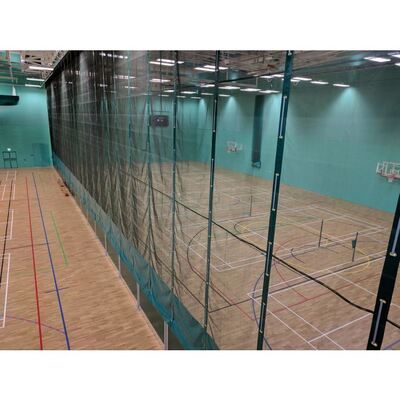

Project Showcase
