Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed

Name: Electric Motorized Sports Hall Divider Curtain with Customized Size and 7.5 meters/minute Lifting Speed
Brand: Shenzhen Flyon Sports Co., Ltd.
SKU: 7.5 미터 / 분
Price: 43.90 USD
Availability: InStock

브랜드 이름:	Flyon, Flyon
모델 번호:	7.5 미터 / 분
모크:	500
가격:	$42.90-45.90

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

리프팅 속도:

7.5 미터 / 분

재료:

메쉬/비닐

모터 유형:

관형 모터

모터 전압:

220V AC

모터 토오크:

100Nm

모터 단계:

단일-위상

모터 직경:

3 피트

겹쳐 쌓이는 차원:

50cm

최대 길이:

20 Ｍ

최대 면적:

125m²

작동 모드:

키 스위치, 무선 리모컨

과부하 보호:

자동 열 재설정

패브릭 옵션:

솔리드, 메쉬, 솔리드 및 메쉬

하단 튜브:

패딩 처리된

이음새 유형:

수평의

강조하다:

Electric Motorized Sports Hall Divider Curtain

Customized Size Dividing Curtain

7.5 meters/minute Lifting Speed Roll up Divider Curtain

제품 설명

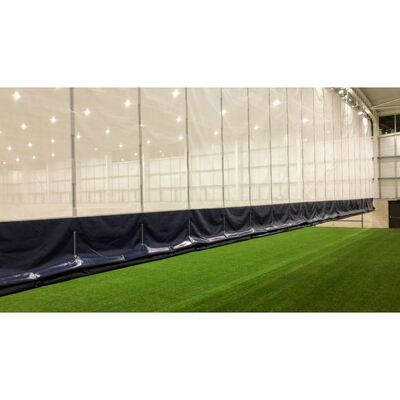

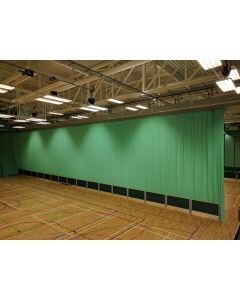

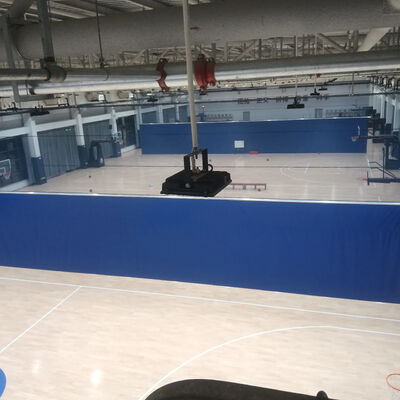

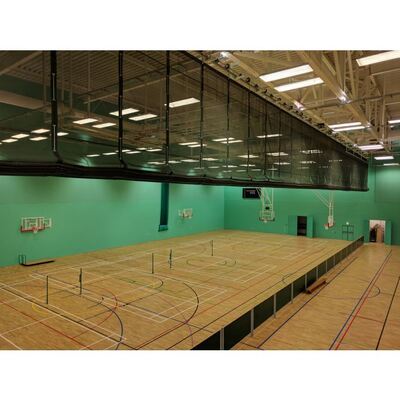

Electric Motorized Sports Hall Divider Curtains

The Center Roll Divider features an innovative overhead design for gymnasiums, eliminating traditional hoist cables, straps, and overhead support rollers. This system provides minimal stack height for maximum space utilization.

As the aluminum drive tube rotates, it smoothly moves the curtain upward, rolling both top and bottom sections compactly toward the ceiling. This design eliminates common wear points found in other divider systems and enables the Center-Roll to operate at twice the speed of standard curtains.

The assembly operates with minimal noise and includes automatic overheating protection. Permanently lubricated components ensure maintenance-free operation. When mounted directly to roof structures, this divider maintains a stack dimension within 50cm of the ceiling for optimal clearance.

The system achieves fast folding action at 7.5 meters per minute and is available in solid, mesh, or combination configurations.

Product Specifications

Item	Value
Place of Origin	China
Product Name	Sports Hall Dividing Curtains
Color	Customizable
Brand	Flyon
Material	High-strength polyester fiber or glass fiber fabric with PVC coating
Suitable Places	Gymnasium, schools, basketball courts

Motor System

Utilizes 100 Nm, 220 V AC tubular motors with 3-foot diameter. The tubular-type motor (220V, single-phase) includes gear reducer and brake mechanism concealed within the horizontal batten tube. Motor features up/down push-button limit switches and automatic reset thermal overload protection.

Motor Configuration

Curtains up to 125 m² or 20 meters long utilize single motor operation. Larger curtains employ two synchronized motors for consistent performance. Standard operation includes key switch control with optional wireless remote capability.

Performance Specifications

Typical stacking dimension is approximately 50 cm. Curtain raises or lowers at a rate of approximately 7.5 meters per minute for efficient operation.

Available Configurations

Available in wide variety of vinyl and mesh colors

Solid and Mesh: Combination with padded bottom tube

All Solid: Complete solid construction with padded bottom tube

All Mesh: Full mesh design with padded bottom tube

Construction Features

Horizontal seams ensure smooth rolling action and consistent performance throughout the curtain's operation.

Quality Certifications

Packaging & Shipping

Company Profile

Fylon has specialized in EPDM and SBR granules production for over ten years, bringing extensive manufacturing expertise to our sports division products.

Frequently Asked Questions

What is your delivery time?

We offer flexible delivery schedules. In-stock items ship within 5 working days, while mass production orders require 25-35 working days.

Can you provide warranty?

Yes! We provide 5 years quality warranty with 10 years backup support for all our products.

Can I get your samples?

Yes! Flyon Sports offers free samples for qualified customers, typically prepared within 3 days.

Do you provide OEM service?

Yes! We provide comprehensive OEM and ODM services to meet your specific requirements.

Contact Information

Website: www.flyonsports.cn

Address: 406 Room B#2013 Creative Marker Park, Lijia Road 108th LongGang District Shenzhen, China

Whatsapp: +86 13534071985

Email: Info@flyonsport.com
