High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas

브랜드 이름:	Flyon
모델 번호:	커튼을 나누십시오
모크:	50 평방 미터
가격:	$46-98/sqm
지불 조건:	T/T, Western Union, L/C.
공급 능력:	> = 50000 평방 미터/월

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

인증:

SGS/GB-18586

재료:

구조

색상:

고객의 요청

화재 비율:

GB-8624

찢김 저항:

GB/T 3917.3-2009

장점:

내화성, 눈물 저항, 환경 친화적, 고강도

제어 시스템:

전력 시스템

포장 세부 사항:

나무 상자

공급 능력:

> = 50000 평방 미터/월

강조하다:

High Strength Dividing Curtain

Fireproof Divider Curtain

Electric Control System Partition Curtain

제품 설명

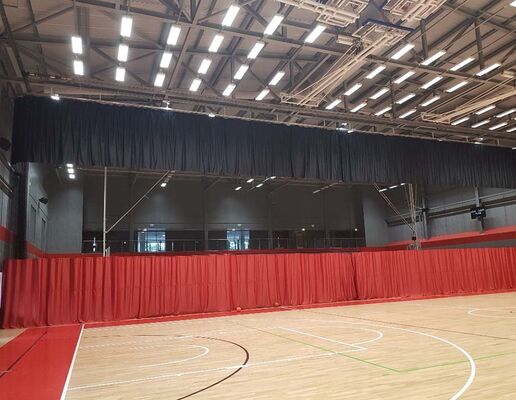

High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas

Special discounts available for new and existing customers. Contact us for specific pricing.

Single Curtain System Specifications

Product Name	Dividing Curtain	Total Hanging Weight	≤ 2.5 kg/m
Maximum Height	12m	Hanging Spacing	≤ 3m
Maximum Width	36m	Maximum Bearing Capacity (per lifting point)	≤ 80kg
Maximum Area	300m²	Maximum Hanging Weight	≤ 750kg

Color Choices

Installation Safety Requirements

A safety gap of at least 50 cm should be reserved between this partition curtain system and the adjacent partition curtain or wall
A safety clearance of at least 15 cm should be left on the side without motor drive system
At least 5cm ground clearance shall be reserved between the bottom of the partition curtain and the ground

Product Advantages

Double layer curtain with high quality PVC for superior sound absorption
Integrated netting sections allow natural light transmission
Complete system includes all necessary materials and segments with aluminum truss carrier structure
User-friendly operation with multiple configuration options available
Complete system provided with tested and certified components

Electric and Control System

High-performance drum motor (220V, 450W, 120N/M) with internal planetary gear reducer, up-and-down position brake limiter, push-button limit switch, automatic reset and thermal overload protection system integrated in the middle winding drum. Ensures stable and reliable operation.
