Electric Motorized Divider Curtain with Customizable Size and High Breathability for Sports Halls

브랜드 이름:	Flyon
모델 번호:	분배기 커튼
모크:	50 평방 미터
가격:	46-105 dollars per SQM
지불 조건:	T/T, 서부 동맹
공급 능력:	> = 50000 sqm/월

자세한 정보

제품 설명

자세한 정보

원래 장소:

심천, 중국

인증:

GBT5573-2008, CE

재료:

메쉬/ 비닐

색상:

빨간색, 파란색, 녹색, 노란색, 흰색, 회색 및 맞춤형

크기:

맞춤형

드는 속도:

7.5 미터 / 분

통기성:

> 45%

포장 세부 사항:

표준 패키지

포장 세부 사항:

나무 상자

공급 능력:

> = 50000 sqm/월

강조하다:

Electric Motorized Divider Curtain

Customizable Size Dividing Curtain

High Breathability Sports Hall Divider

제품 설명

Electric Motorized Divider Curtain with Customizable Size and High Breathability for Sports Halls

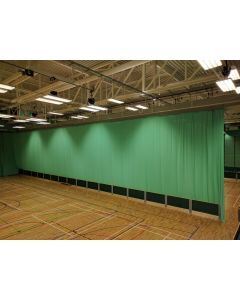

Professional sports dividing curtains designed for efficient space management in multi-purpose sports halls and facilities.

Single Curtain System Specifications

Product Name	Divider Curtain	Total Hanging Weight	≤ 2.5 kg/m
Maximum Height	12m	Hanging Spacing	≤ 3m
Maximum Width	36m	Maximum Bearing Capacity (per lifting point)	≤ 80kg
Maximum Area	300m²	Maximum Hanging Weight	≤ 750kg

Color Choices

Model Options

Installation Safety Requirements

A safety gap of at least 50cm should be maintained between this partition curtain system and adjacent partition curtains or walls.
A safety distance of at least 15cm must be left on the side without the engine running.
There should be at least 5cm clearance between the bottom of the partition curtain and the ground.

Electric and Control System

The middle reel utilizes a high-performance drum motor (220V, 450W, 120N/M) with internal meshing planetary gear reducer, upper and lower brake limiters, push-button limit switches, automatic reset and thermal overload protection systems for stable and reliable operation.

Product Advantages

Double curtains made of high-quality PVC for superior sound absorption
Partial mesh design allows natural light transmission
Complete system includes all required materials, parts, and aluminum truss load-bearing structure
Environmentally friendly, tear-resistant, high-strength, and fire-resistant materials
Simple operation with multiple configuration options available

Project Presentation
